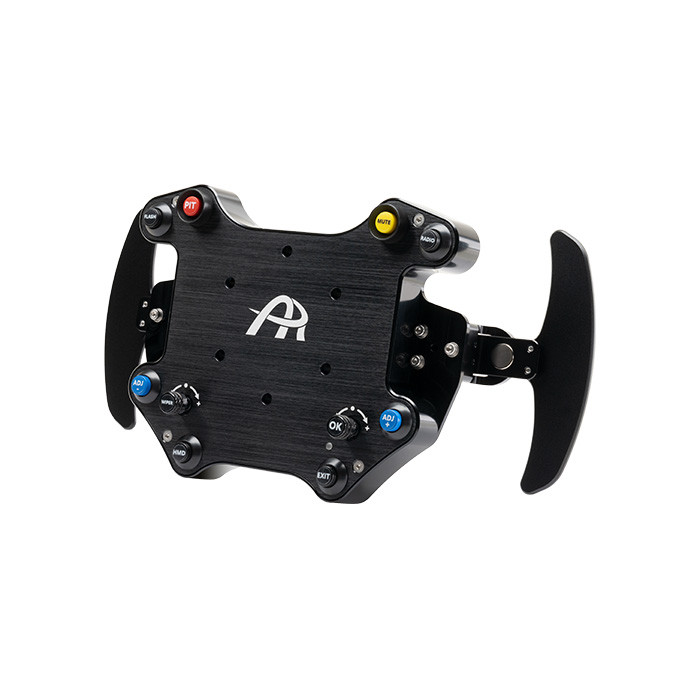

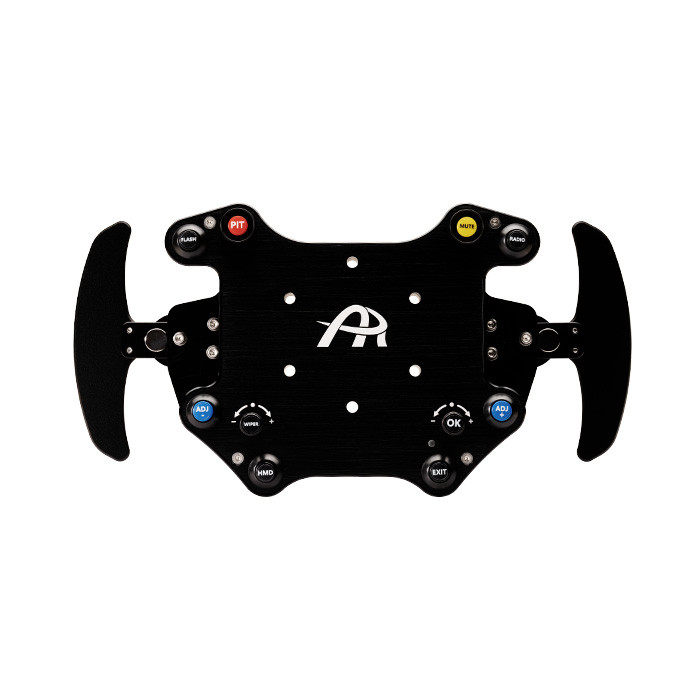

ASCHER-RACING B24L-SC

• wireless connection to SC2
• SC1 (SIMUCUBE 1): ADDITIONAL RECEIVER MODULE REQUIRED!
• low latency
• low energy consumption: 2-3 years of battery life on heavy daily usage
• standard 14250 Lithium battery for maximum capacity

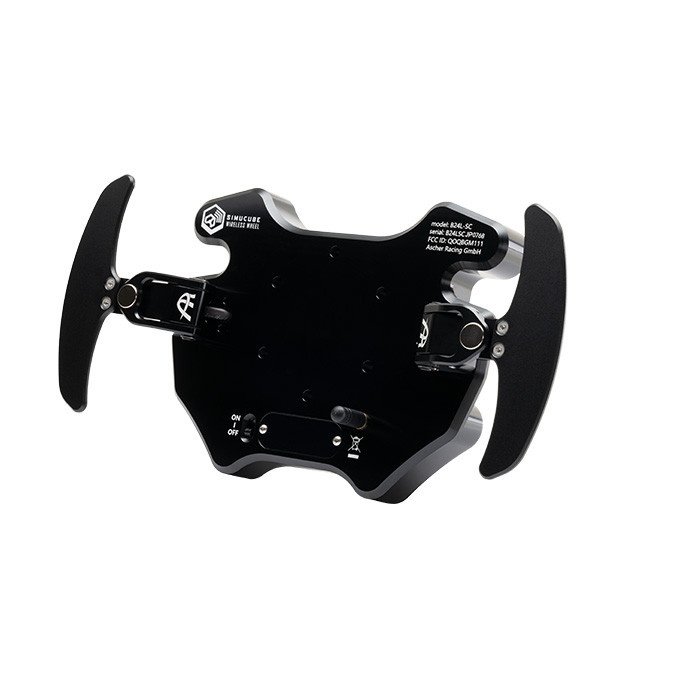

• easy to swap battery via back side access window
• button inputs via Simucube – no additional Windows controller
• hot swapping wheels in-game without reconfiguring inputs
• maximum signal quality via external stub antenna

24 INPUTS

• 8 x push buttons with positive tactile feeling
• 2 x protective button guards
• 2 x multifunctional 7-way joysticks
• 2 x paddle shifters

HIGH QUALITY FINISH

• machined out of automitive aluminium
• black anodized and laser engraved
• brushed frontplate surface finish
• glass bed blasted paddle surface finish

MAGNETIC PADDLE SHIFTERS

• cnc machined and anodized out of automotive aluminium
• strong snap-action force
• alternative magnets to reduce force included
• extremely durable automotive switch

BUTTON LABELS

• 50 pcs button labels each black and white
• 72 pcs Joystick labels (blue, green, red, black, yellow, white)
• labels for various common steering wheel inputs

GENERAL INFORMATION

• 6 x 70 mm bolt pattern
• M5 x 35/40 mm screws, nuts and washers to mount Q1R included
• Quick Release not included
• mass: 700 g
• not suitable for heavily dished steering wheel rims

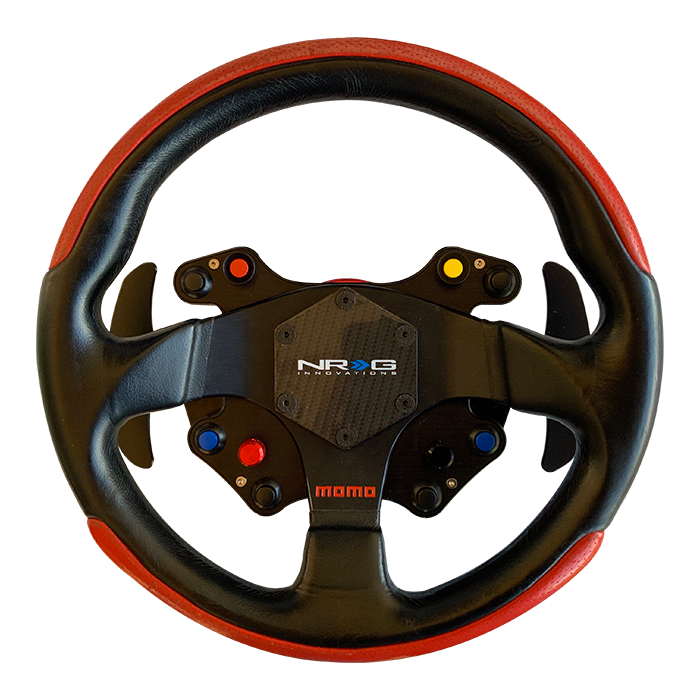

DIFFERENCE BETWEEN M AND L MODELS

• mainly the compatibility of steering wheel rims
• M model has buttons moved upwards for rims with a horizontal shaped center
• L model has buttons moved downwards for rims with a curved shaped center
• refer to the list below for matching steering wheel rims

COMPATIBLE WHEELBASES

• Simucube 2
• Simucube 1 (OSW, Mige) – ADDITIONAL RECEIVER MODULE REQUIRED!

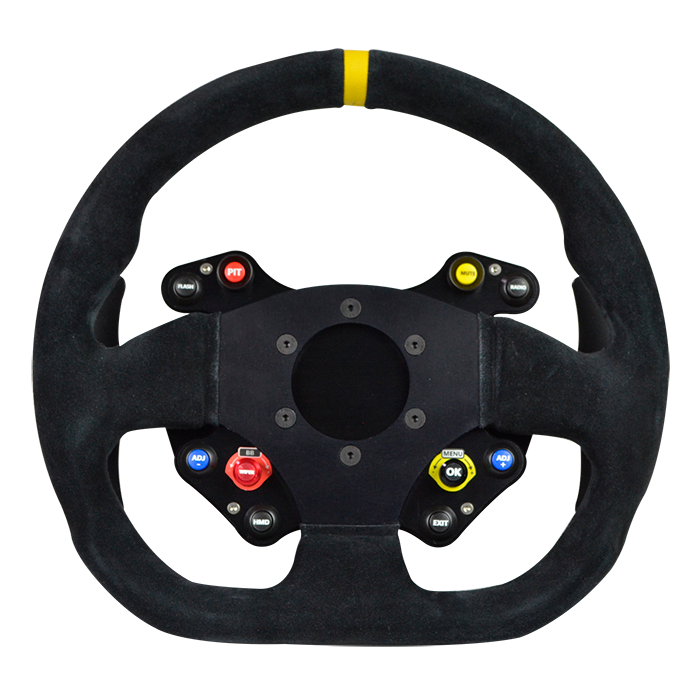

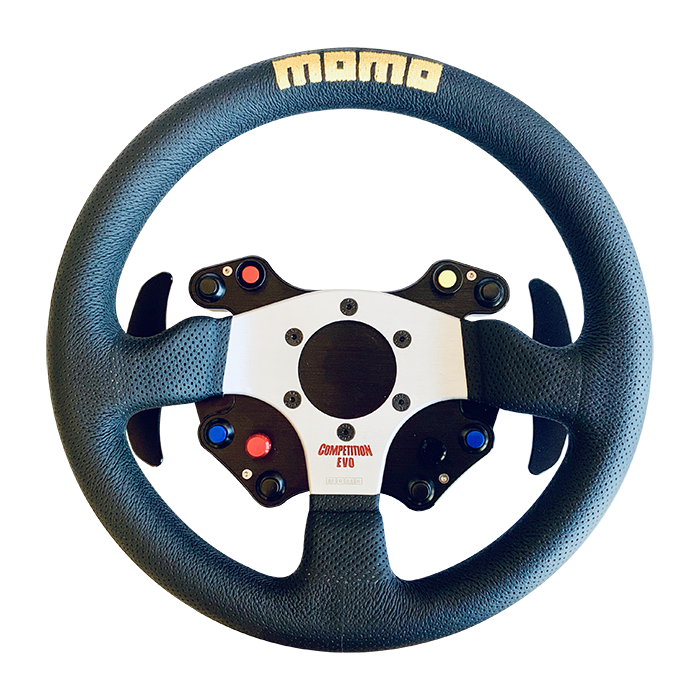

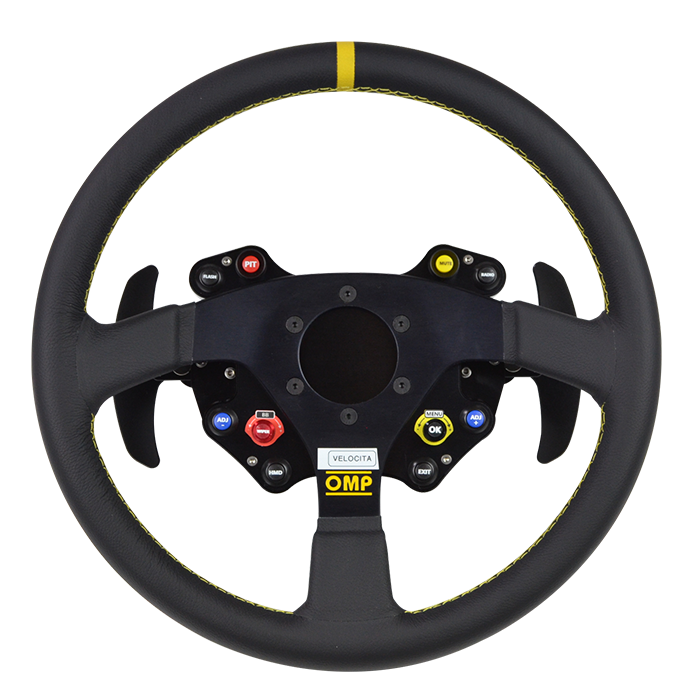

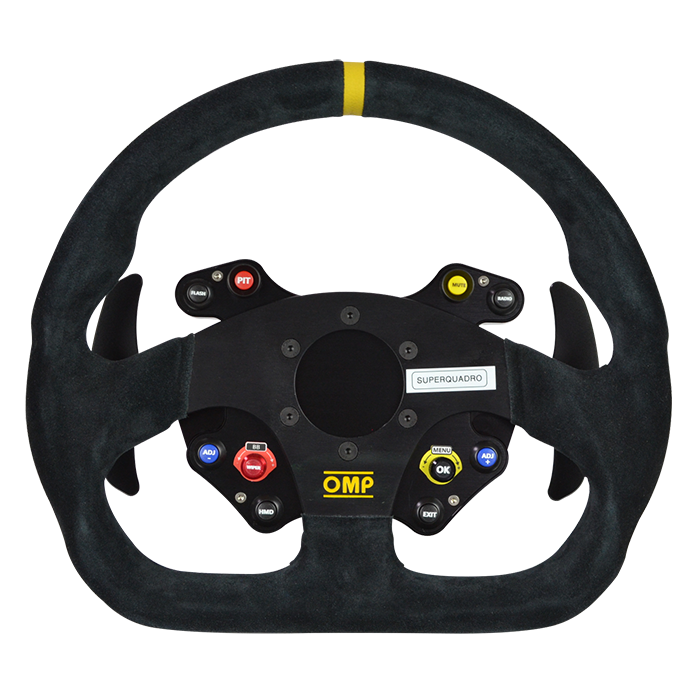

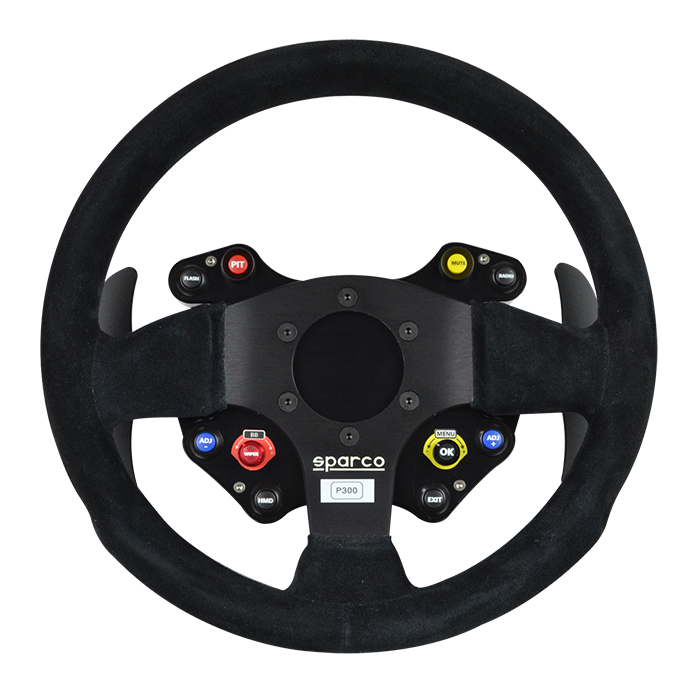

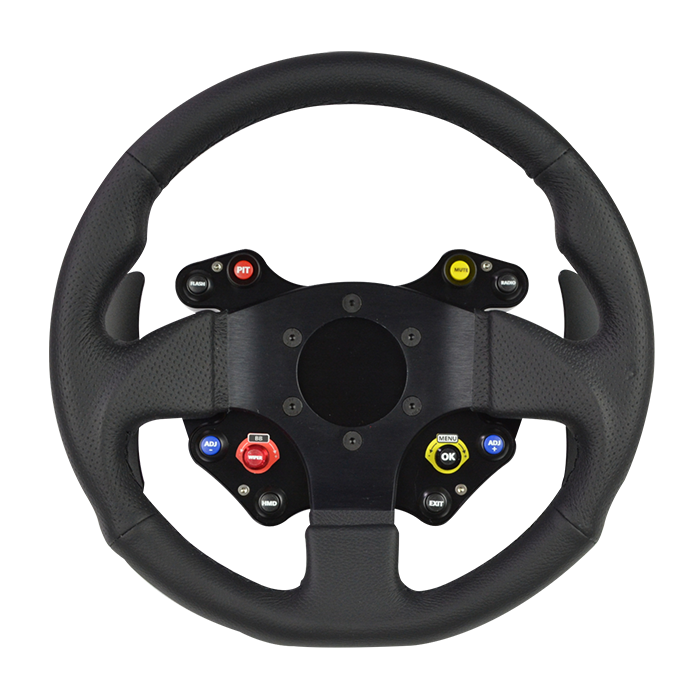

COMPATIBLE STEERING WHEELS
