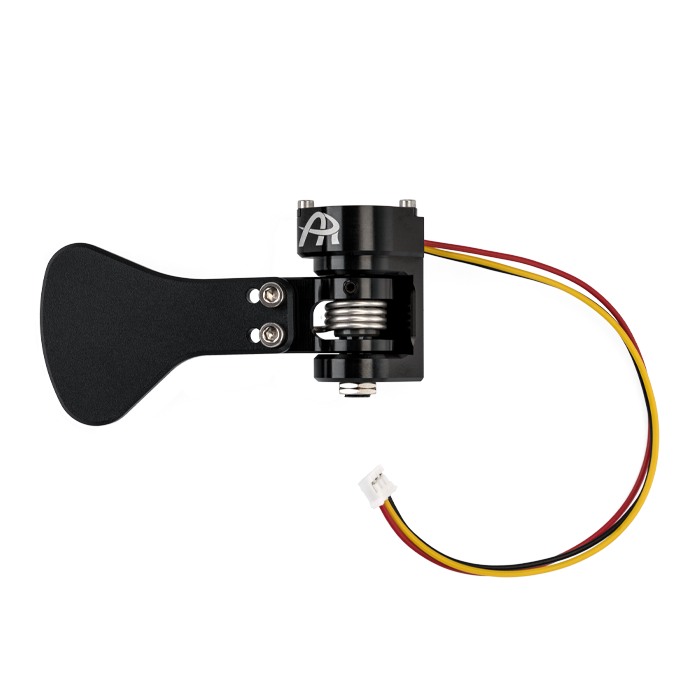

Ascher Racing Clutch Paddles

General Specifications

• weight approx. 48g per clutch
• no moving electronic parts for unlimited operation
• wide temperature range: -40°C to 125°C
• IP67 waterproof

 Electrical Specifications

• 3.3V (factory default) or 5.0V DC supply voltage
• 5.0V mode: remove jumper!
• output signal: analog voltage, ratiometric to VDD
• output range: approx. 6% to 94% VDD
• 12-bit resolution (4096 steps/ <0.01mm paddle movement)
• noiseless output due to on-sensor filtering and hysteresis
• extremely low power consumtion, ideal for wireless devices (approx. 1mA)

Mounting, additional Information

Datasheet_76080024_Clutch Gen4
