- Ascher Racing F64 V3
- Details
-
Details

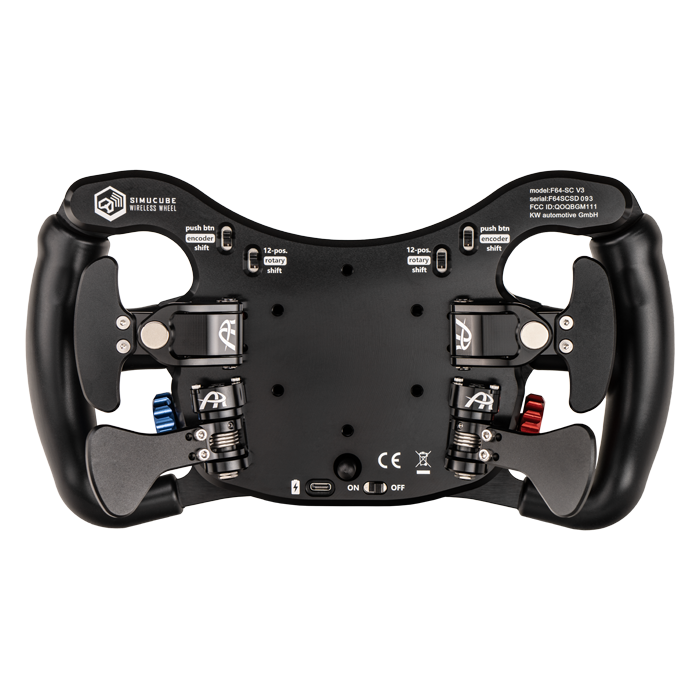

Additional Features of SC Version:- Average battery runtime: 800h (rechargeable)
- rechargeable via USB-C (approx. 6h)
- 2 modes of the top two encoders, adjustable by switches on the back: (push btn / shift)
- push btn. = regular encoder incl. push button
- shift = double encoder (normal turn / push and turn)
- e.g. normal turning = encoder 1 = TC
- e.g. push & turn = Encoder 2 = ABS
- 2 modes of 12-position rotary switches, (12-pos. / shift)
- 12-pos. = regular mode, each position gives a signal
- shift = shift function of the thumb encoder
- e.g. 12-position rotary on position 1 = thumb encoder output 1 (e.g. TC)
- e.g. 12-position rotary on position 2 = thumb encoder output 2 (e.g. ABS)
- e.g. 12-position rotary on position 3 = thumb encoder output 3 (e.g. volume)
- e.g. 12-position rotary on position 2 = thumb encoder output 2 (e.g. ABS)
- e.g. 12-position rotary on position 3 = thumb encoder output 3 (e.g. volume)

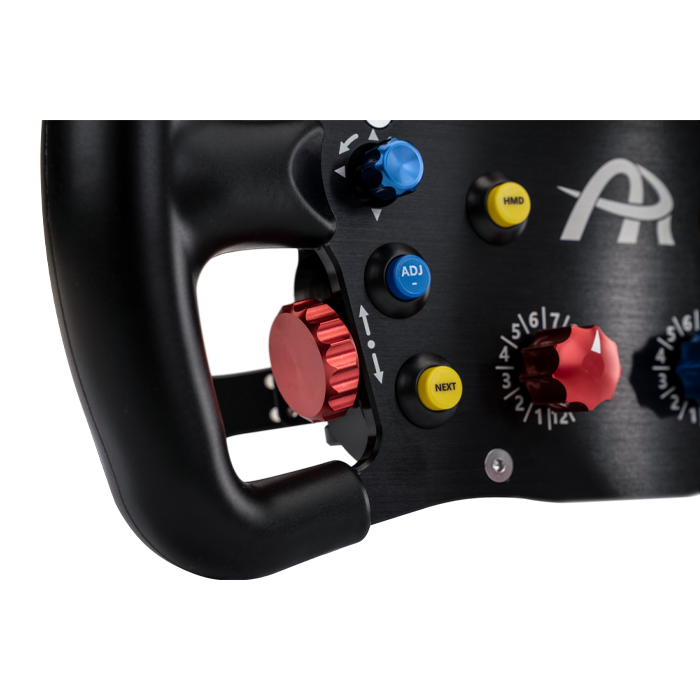

64 Inputs:- 14 x push buttons with positive tactile feeling
- 2 x protective button guards
- 2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button)
- 2 x encoders inc. push button functionality, aluminium knob
- 2 x thumb encoders
- 2 x 12-position rotary switches, aluminium knob
- 2 x paddle shifters
- 2 x clutch paddles with electronic bite-point calibration
High Quality Finish:- Maximum grip level from closed, ergonomic rubber grips
- machined out of automitive aluminium
- black anodized and laser engraved
- brushed frontplate surface finish
- glass bed blasted paddle surface finish
Contactless Clutch Paddles:- cnc machined and anodized out of automotive aluminium
- contactless hall sensor
- smooth operation for maximum control
Magnetic Paddle Shifters:- cnc machined and anodized out of automotive aluminium
- strong snap-action force
- alternative magnets to reduce force included
- reliable automotive switch
Button Labels:- 50 pcs button labels each black and white
- 72 pcs encoder labels (blue, green, red, black, yellow, white)
- labels for various common steering wheel inputs
Electronic bite-point calibration:- precise adjustments in 1.0 % and 0.1 % increments
- Bite Point can be changed via a configuration tool or directly on the steering wheel:
- 1. push both joystick buttons for 1s to acces bite-point mode
- 2. LED lights up to indicate calibration mode
- 3. rotate left joystick for 1.0 % increments / right joystick for 0.1 % increments (LED flashes to indicate changes)
- 4. exit calibration mode by pushing both joysticks again for 1s
- recommended procedure for finding best setting:
- 1. enter calibration mode and set bite-point to high value, e.g. 80 %
- 2. pull slave clutch only
- 3. apply throttle
- 4. reduce bite-point in 1.0 % increments (left joystick) until vehicle starts moving
- 5. make test starts to fine tune desired bite-point setting
- 6. exit bite-point calibration mode
- recommended procedure for quick race starts
- 1. pull both master and slave clutche
- 2. apply throttle
- 3. race start -> let master clutch snap
- 4. it will take less than 20 ms to reach desired bite-point
- 5. slowly release slave clutch
General Information:- 285 mm wheel diameter
- 6 x 70 mm bolt pattern
- robust, shielded coiled cable with industrial Binder M16 connector
- coiled cable connector length approx. 64mm
- spacer may be required to create sufficient clearance to the wheel base
- M5 x 12 mm stainless screws to mount QR included
- Quick Release not included
- to mount M5 threaded QRs, use captive screws
- mass: 1140 g
Compatible Wheelbases:- Simucube 2
- Simucube 1 (OSW, Mige)
- Accuforce (captive screws & 3rd party extension required)
- Leo Bodnar (Wheelbase comes without QR)
- OSW (Argon) (Wheelbase comes without QR)
- Simagic (captive screws required)
- VRS Direct Force (captive screws required)
- Fanatec Podium Hub (captive screws required)

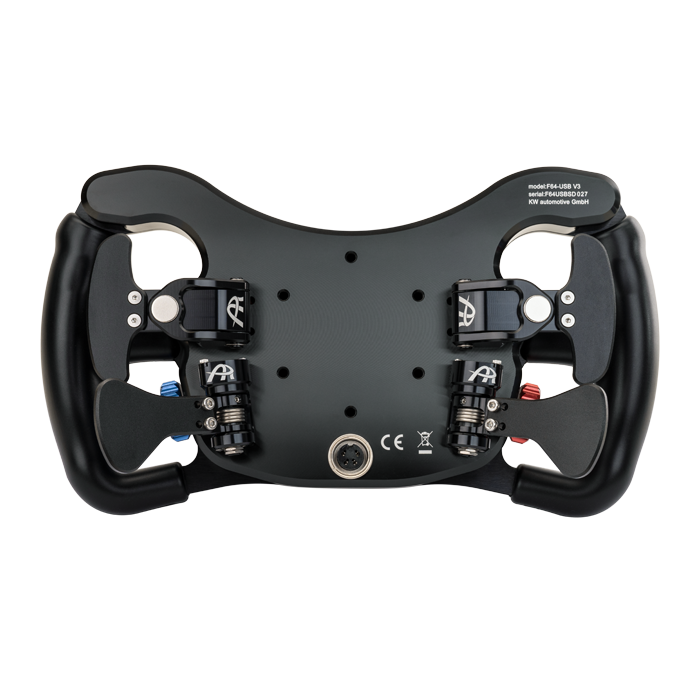

New Features:- Compared to its previous V1 model, the F64-USB V3 features new 12-position switches which provide improved feedback, a closed shape and motorsport rubber grips
- Improved grip ergonomics including slightly larger diameter, thinner lower section, different top shape to push top button
- Rubber grips:
- are not showing any tear
- offers much more grip
- perfect hardness (not too soft, not too hard) for much easier endurance racing without getting exhausted
- can be used without using gloves (also with sweaty hands)
- better hygienics
- new 12-position rotary knob
- better usability in “encoder mode” (rotational symmetry)
- much better feedback
- Miscellaneous
-
Part number: 76080025
