- Details
-
Details
General Information
- 300mm diameter
- 6 x 70 mm bolt pattern
- Robust, shielded coiled cable with industrial Binder M16 connector (USB version only)
- QR spacer may be required to create sufficient clearance to the wheelbase (connector length approx. 64mm)
- Quick release not included except chosen at check-out
- Mass: 1520g

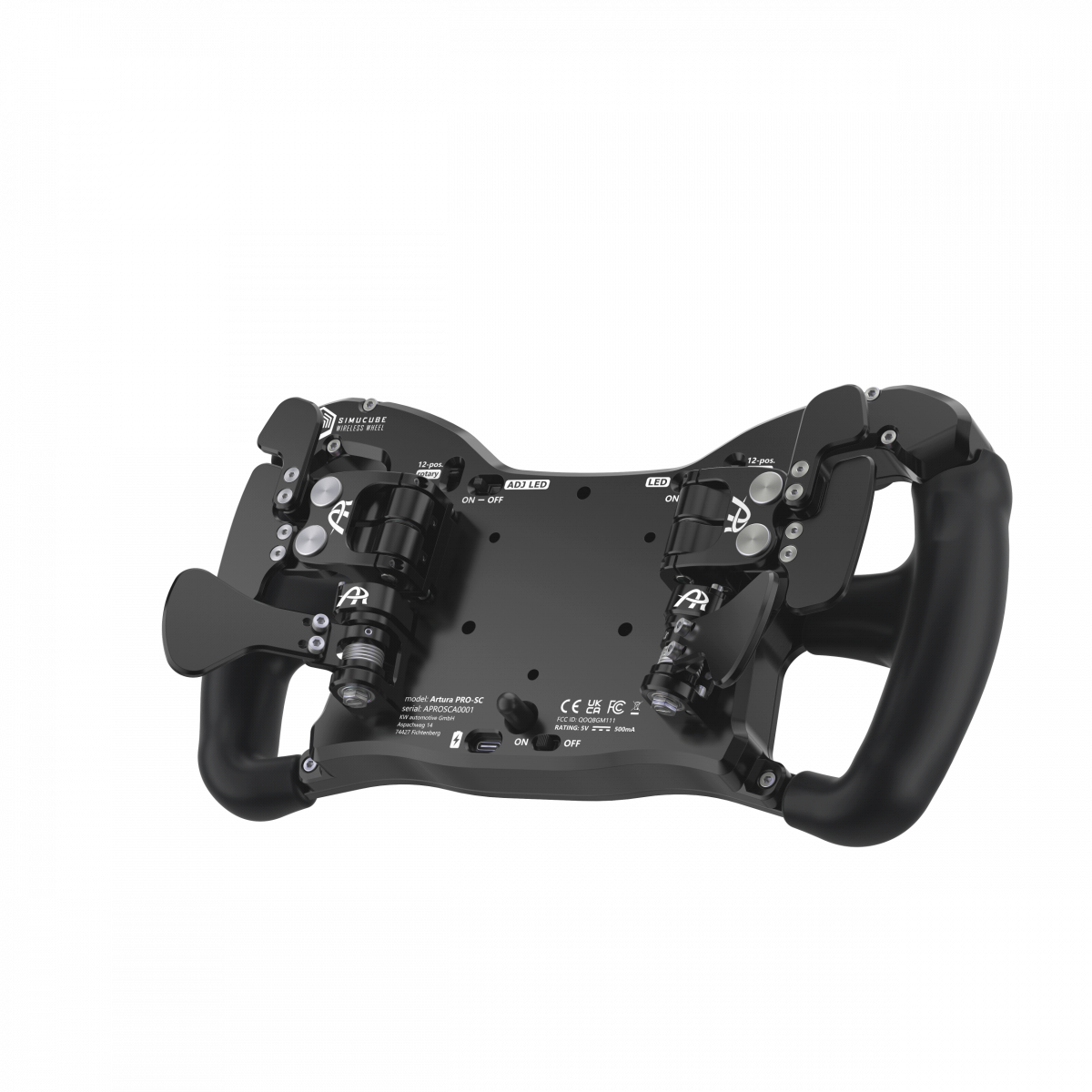

McLaren Esports Wheel
- Based on the official McLaren Artura GT4 wheel
- Uses identical components of real-racing steering wheel
- Esports optimized functionality
- Maximum grip level from ergonomically improved rubber grips and 300 mm wheel diameter used in the real race car
Optional: Simucube Wireless Wheel™
- Wireless connection to SC2
- Low latency
- Average battery runtime: 800h (rechargeable)
- Average battery runtime with backlighting: up to 30h
- Easy to charge: USB-C port on the rear (approx. 6h)
- Button inputs via Simucube – no additional Windows controller needed
- Hot swapping wheels in-game without reconfiguring inputs
- Maximum signal quality via external stub antenna
Optional: Universal USB Wheel
- Telemetry based and animated RGB lighting
- Freely configurable button mapping (e.g., to enable barrier free switching to other
- steering wheels) & modification of all thumb encoders & rotaries possible
- Non linear clutch curves adjustable (various predefined progressive/degressive/s
- curves selectable or individual definition possible; separate setting of left and right
- clutch possible)
- Encoder pulse width adjustable (defines how long the button is triggered per click)
- Selection of the analog input mode (e.g., for clutches) & quick calibration of the
- analog axes directly on the steering wheel without the use of software
- Low power consumption of only max. 500mA according to USB specification
- No power injection necessary
- Compatibility: Unrestricted operation with all PC mainboards ; therefore, compatible with almost every commonly available wheelbase, incl. Fanatec, Simagic, Leo Bodnar and OSW wheelbases; optimized for unrestricted operation with Asetek QR System
Over 100 Inputs
- 14 x RGB illuminated push buttons (16 Mio. colors); individually adjustable coloring and tactile feedback
- 4 x thumb encoder
- 2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button)
- 2 x 12-position rotary switches
- 2 x Gen6 magnetic and silenced motorsports double paddle shifters
- Retrofittable single shifter
High-Quality Finish
- Machined out of automotive aluminum
- Black anodized and laser engraved
- Brushed front plate surface finish
- Glass bed blasted paddle surface finish
Gen6 Magnetic Double Paddle Shifters
- New generation of magnetic shifters developed from scratch for motorsport applications
- Machined and anodized out of automotive aluminum
- Proven strong snap-action force
- Silenced by damped rubber stops on both ends with unlimited precision due to tight tolerances
- Free of play due to preloaded ball bearings
- Marginal hysteresis for noise-free and precise gear changes
- No switches inside –extremely durable hall sensor
- Unlimited interchange possibilities due to identical mounting points for double shifter paddles
Laser-Etched Buttons
- Laser-etched button caps with most common symbols available
- Easily interchangeable due to two-piece-design – no need to open the wheel
- Additional labels for various common steering wheel inputs
Scope of delivery
- Ascher Racing McLaren Artura Pro sim racing steering wheel
- Ascher Racing McLaren sticker set
- M5 x 12 mm stainless screws to mount QR
- Miscellaneous
-
Part number: 76080052
