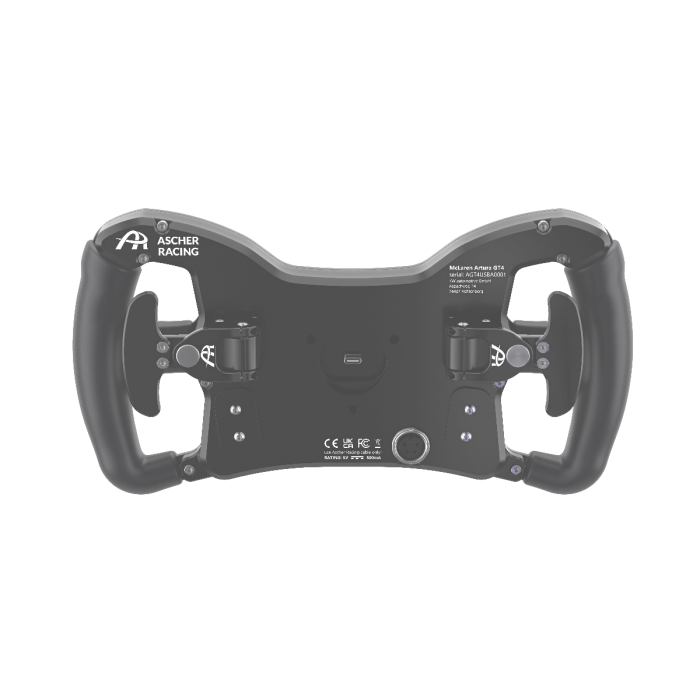

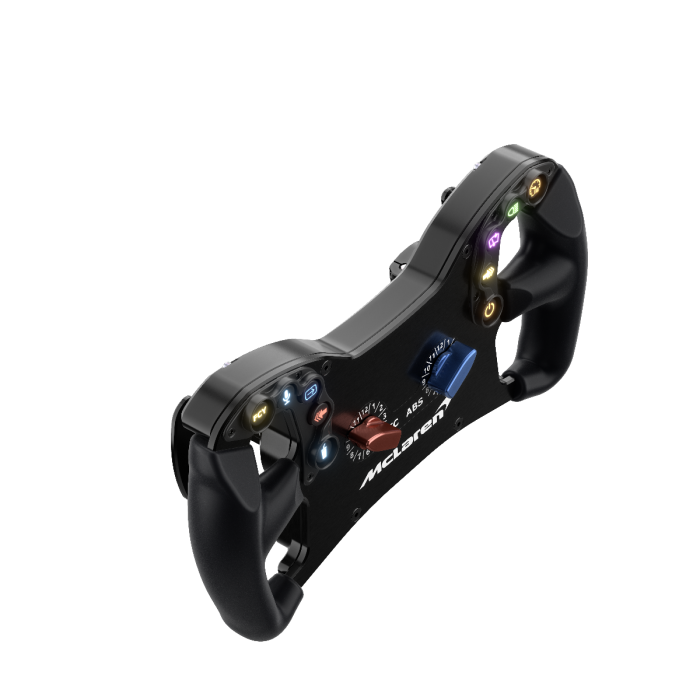

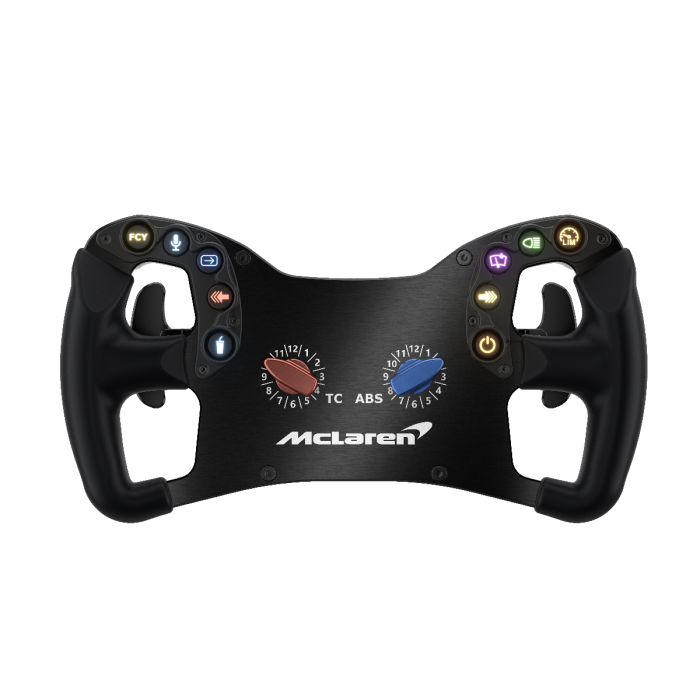

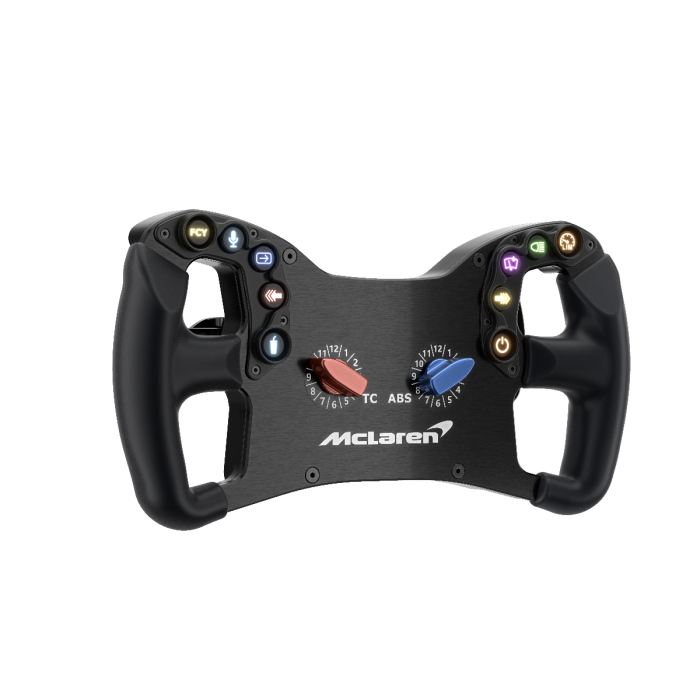

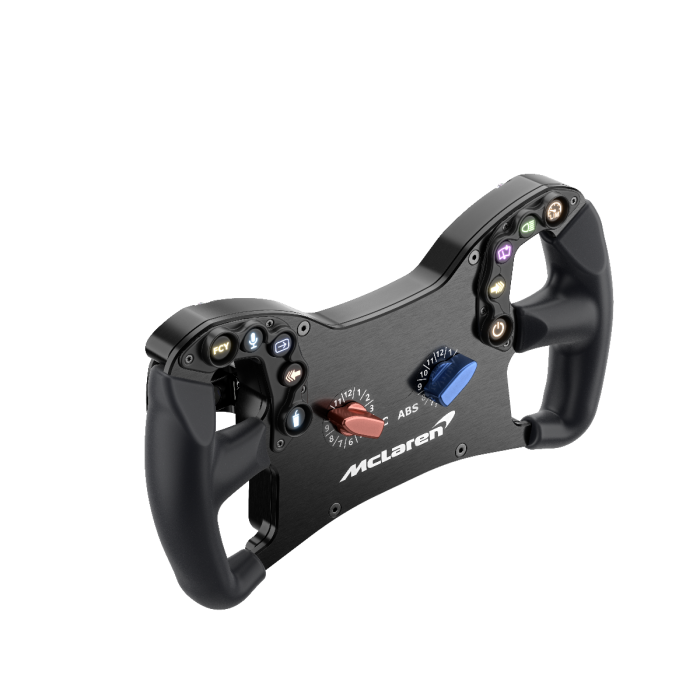

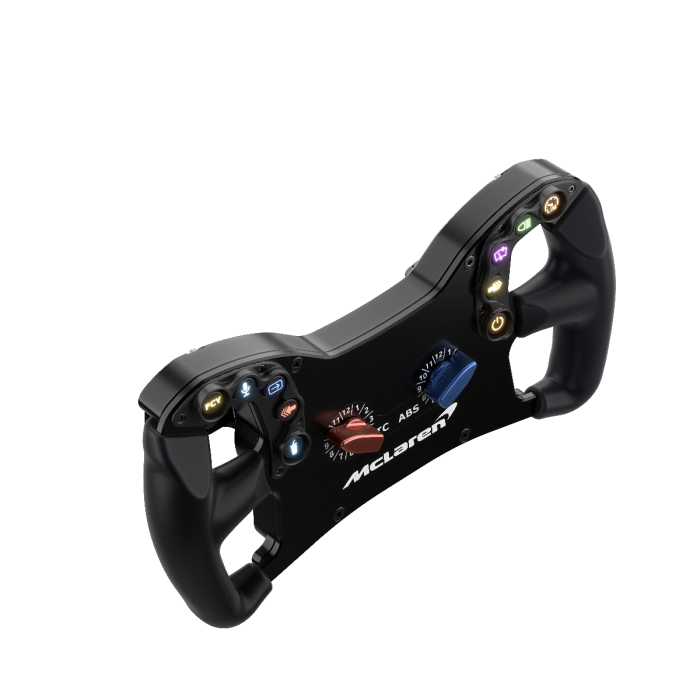

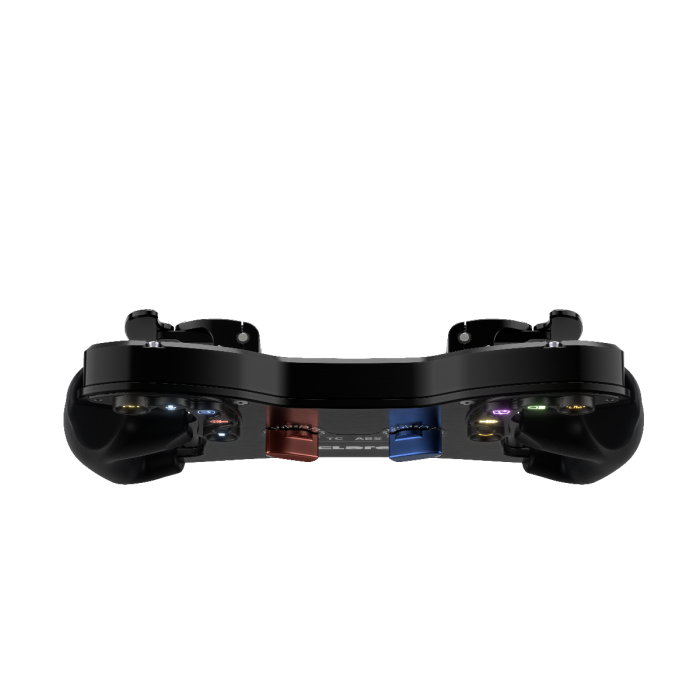

ASCHER-RACING MCLAREN ARTURA GT4

SPECIFIC FEATURES USB VERSIONS

RGB Backlighting

• Animated, telemetry-supported lighting can be set up

Freely Configurable Button Mapping

• Freely configurable button mapping (e.g., to enable barrier-free switching to other steering wheels) & modification of all thumb encoders & rotaries possible

Encoder Pulse Width Adjustable

• Encoder pulse width adjustable (defines how long the button is triggered per click)

Settings That Can Be Made Directly On The Steering Wheel (Without Using Software)

• Selection of the analog input mode (e.g., for clutches) & quick calibration of the analog axes directly on the steering wheel

Power Supply

• USB, no power injection necessary

Power Consumption / Battery Life

• Low power consumption of only max. 500mA according to USB specification

Compatibility

• Fanatec
• Asetek
• Simagic
• OSW
• Many others

Connection

• Cabled (USB)

GENERAL INFORMATION

• 300mm diameter
• 3 x 50 mm bolt pattern

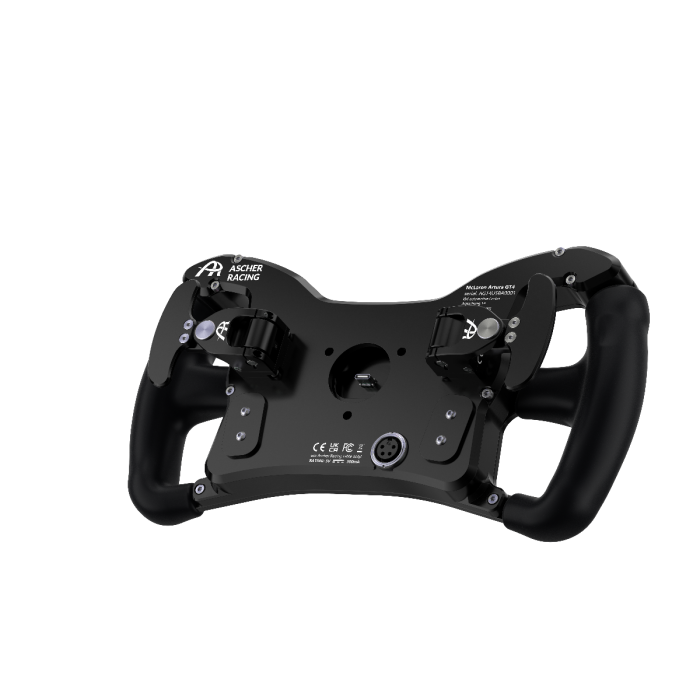

• Robust, shielded coiled cable with industrial Binder M16 connector (USB version only)
• QR spacer may be required to create sufficient clearance to the wheelbase (connector length approx. 64mm)
• Quick release not included except chosen at check-out
• Mass: 1300g

Scope of delivery:

• Ascher Racing McLaren Artura GT4 sim racing steering wheel
• Ascher Racing McLaren sticker set
• M5 x 35 mm captive screws to mount QR

TECHNICAL DETAILS

McLAREN ESPORTS WHEEL

• Official steering wheel of the new McLaren Artura GT4
• Identical components of real-racing steering wheel and Esports variant
• Maximum grip level from ergonomically improved rubber grips and 300 mm wheel diameter used in the real race car

USB WHEEL

• Telemetry-based and animated RGB lighting
• Freely configurable button mapping (e.g., to enable barrier-free switching to other steering wheels) & modification of all thumb encoders & rotaries possible
• Non-linear clutch curves adjustable (various predefined progressive/degressive/s curves selectable or individual definition
• Encoder pulse width adjustable (defines how long the button is triggered per click)
• Selection of the analog input mode (e.g., for clutches) & quick calibration of the analog axes directly on the steering wheel without the use of software
• Low power consumption of only max. 500mA according to USB specification
• No power injection necessary
• Unrestricted operation with all PC mainboards
• Unrestricted operation with Asetek QR system

INPUTS LIKE IN THE REAL RACE CAR

• 10 x RGB illuminated push buttons (16 Mio. colors); individually adjustable coloring and tactile feedback
• 2 x 12-position rotary switches
• 2 x Gen6 magnetic and silenced motorsports single paddle shifters
• Upgradeable range of functions (double shifter, clutch paddles)

HIGH-QUALITY FINISH

• Machined out of automotive aluminum
• Black anodized and laser engraved
• Brushed front plate surface finish
• Glass bed blasted paddle surface finish

GEN6 MAGNETIC DOUBLE PADDLE SHIFTERS

• New generation of magnetic shifters developed from scratch for motorsport applications
• Machined and anodized out of automotive aluminum
• Proven strong snap-action force
• Silenced by damped rubber stops on both ends with unlimited precision due to tight tolerances
• Free of play due to preloaded ball bearings
• Marginal hysteresis for noise-free and precise gear changes
• No switches inside –extremely durable hall sensor
• Unlimited interchange possibilities due to identical mounting points for double shifter paddles

LASER-ETCHED BUTTONS

• Laser-etched button caps with most common symbols available
• Easily interchangeable due to two-piece-design – no need to open the wheel
• Additional labels for various common steering wheel inputs

COMPATIBILITY

• Fanatec
• Asetek
• Simagic
• VRS Direct Force
• Accuforce
• Leo Bodmar
• OSW
• Many others
